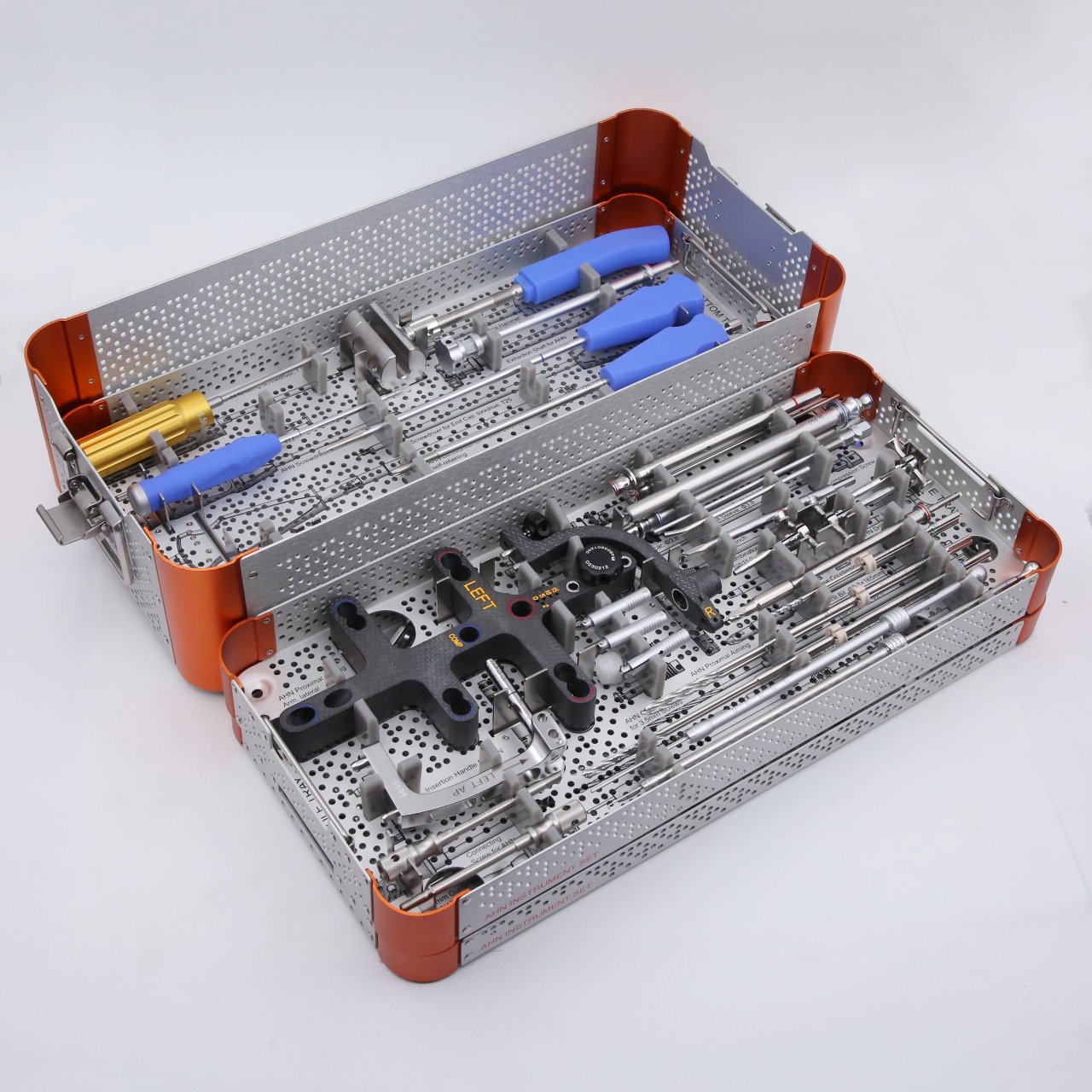

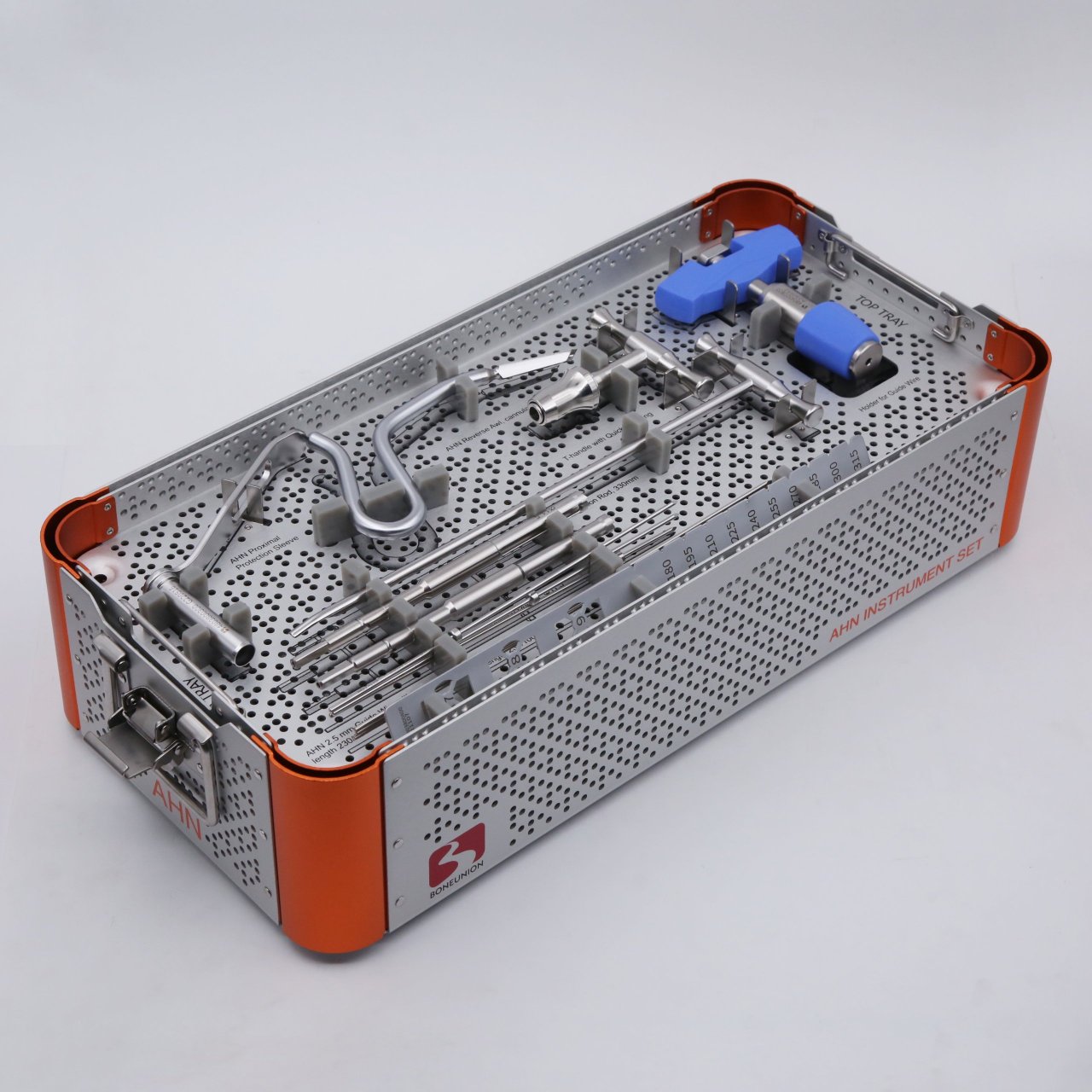

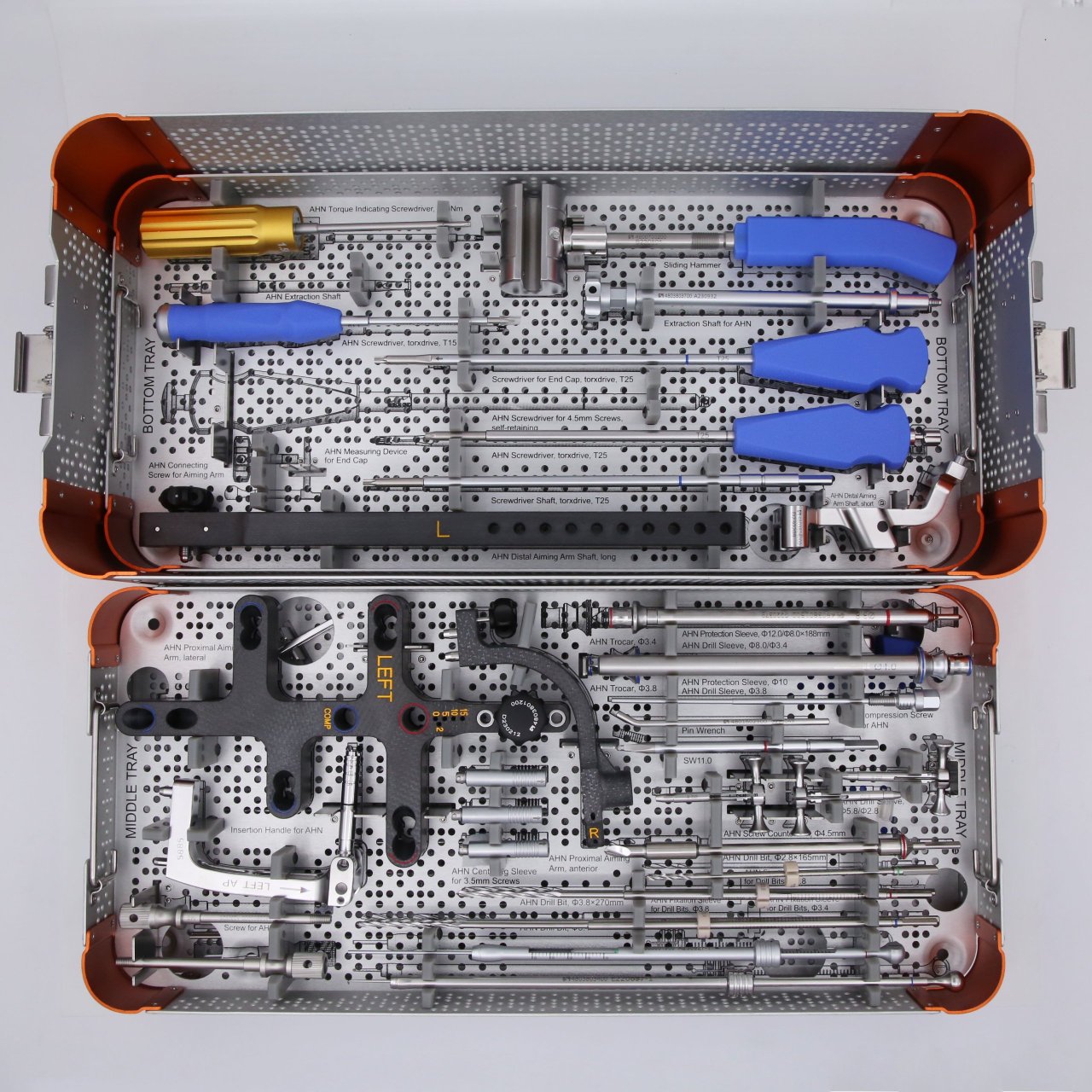

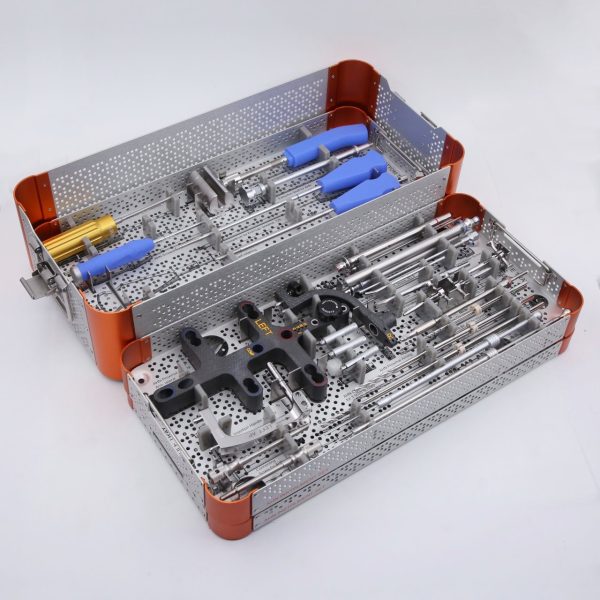

| Advanced Humeral Nail Instrument Set |
SPEC./QTY |
| AHN 2.5 mm Guide Wire with Stop, length 230/50mm |
1 |
| AHN 2.5 mm Guide Wire with Stop, length 230/100mm |
1 |
| AHN 2.5 mm Guide Wire with Stop, length 230/150mm |
1 |
| Holder for Guide Wire |
1 |
| AHN Guide Wire, Φ2.5, length 280mm |
3 |
| AHN Proximal Protection Sleeve |
1 |
| AHN Cannulated Drill Bit, Φ11.5 |
1 |
| AHN Cannulated Drill Bit, Φ10 |
1 |
| AHN Reverse Awl, cannulated |
1 |
| AHN Reduction Rod, 330mm |
1 |
| Guide Wire, Φ2.5×660mm, with olive head |
1 |
| Guide Wire, Φ2.5×660mm, without olive head |
1 |
| AHN Radiographic Ruler |
1 |
| Insertion Handle for AHN |
1 |
| Connecting Screw for AHN |
2 |
| Compression Screw for AHN |
1 |
| Combination Wrench, SW11.0 |
1 |
| Pin Wrench |
1 |
| AHN Proximal Aiming Arm, lateral |
1 |
| AHN Proximal Aiming Arm, anterior |
1 |
| AHN Protection Sleeve, Φ10 |
2 |
| AHN Drill Sleeve, Φ3.8 |
2 |
| AHN Trocar, Φ3.8 |
2 |
| AHN Drill Bit, Φ3.8×270mm |
2 |
| AHN Screw Countersink, Φ4.5mm |
1 |
| AHN Depth Gauge, straight |
1 |
| AHN Screwdriver for 4.5mm Screws, self-retaining |
1 |
| AHN Screwdriver, torxdrive, T25 |
1 |
| Screwdriver Shaft, torxdrive, T25 |
1 |
| T-handle with Quick Coupling |
1 |
| AHN Centering Sleeve for 3.5mm Screws |
3 |
| AHN Drill Sleeve, Φ5.8/Φ2.8 |
3 |
| AHN Drill Bit, Φ2.8×165mm |
2 |
| AHN Fixation Sleeve for Drill Bits, Φ2.8 |
1 |
| AHN Fixation Sleeve for Drill Bits, Φ3.4 |
1 |
| AHN Fixation Sleeve for Drill Bits, Φ3.8 |
2 |
| AHN Torque Indicating Screwdriver, 1.5 Nm |
1 |
| AHN Screwdriver, torxdrive, T15 |
1 |
| AHN Protection Sleeve, Φ12.0/Φ8.0×188mm |
2 |
| AHN Drill Sleeve, Φ8.0/Φ3.4 |
2 |
| AHN Trocar, Φ3.4 |
2 |
| AHN Drill Bit, Φ3.4 |
2 |
| AHN Depth Gauge with Hook |
1 |
| AHN Measuring Device for End Cap |
1 |
| Screwdriver for End Cap, torxdrive, T25 |
1 |
| Extraction Shaft for AHN |
1 |
| AHN Extraction Shaft for Screw, Φ4.5 |
1 |
| Sliding Hammer |
1 |
| AHN Distal Aiming Arm Shaft, long |
1 |
| AHN Distal Aiming Arm Shaft, short |
1 |
| AHN Connecting Screw for Aiming Arm |
1 |

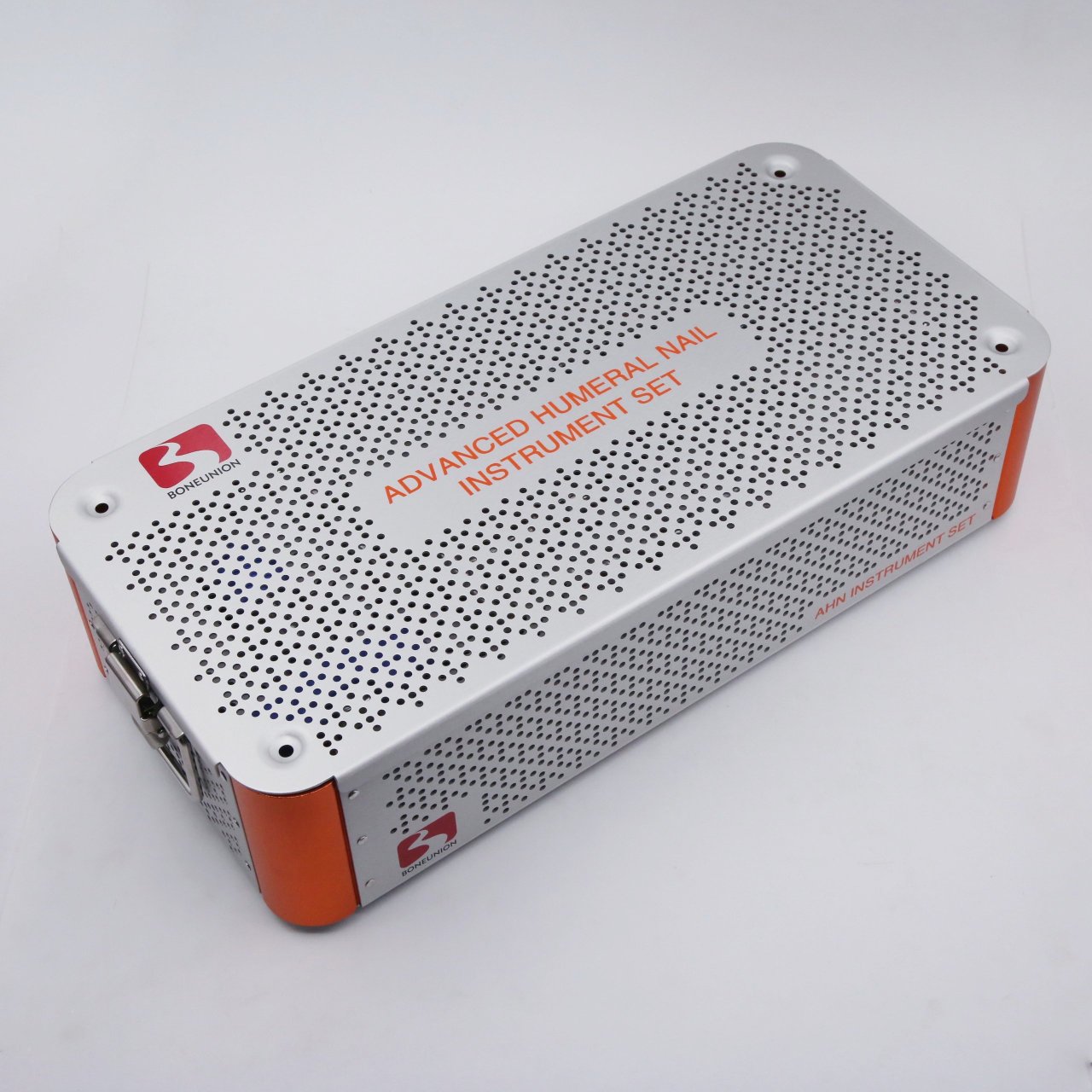

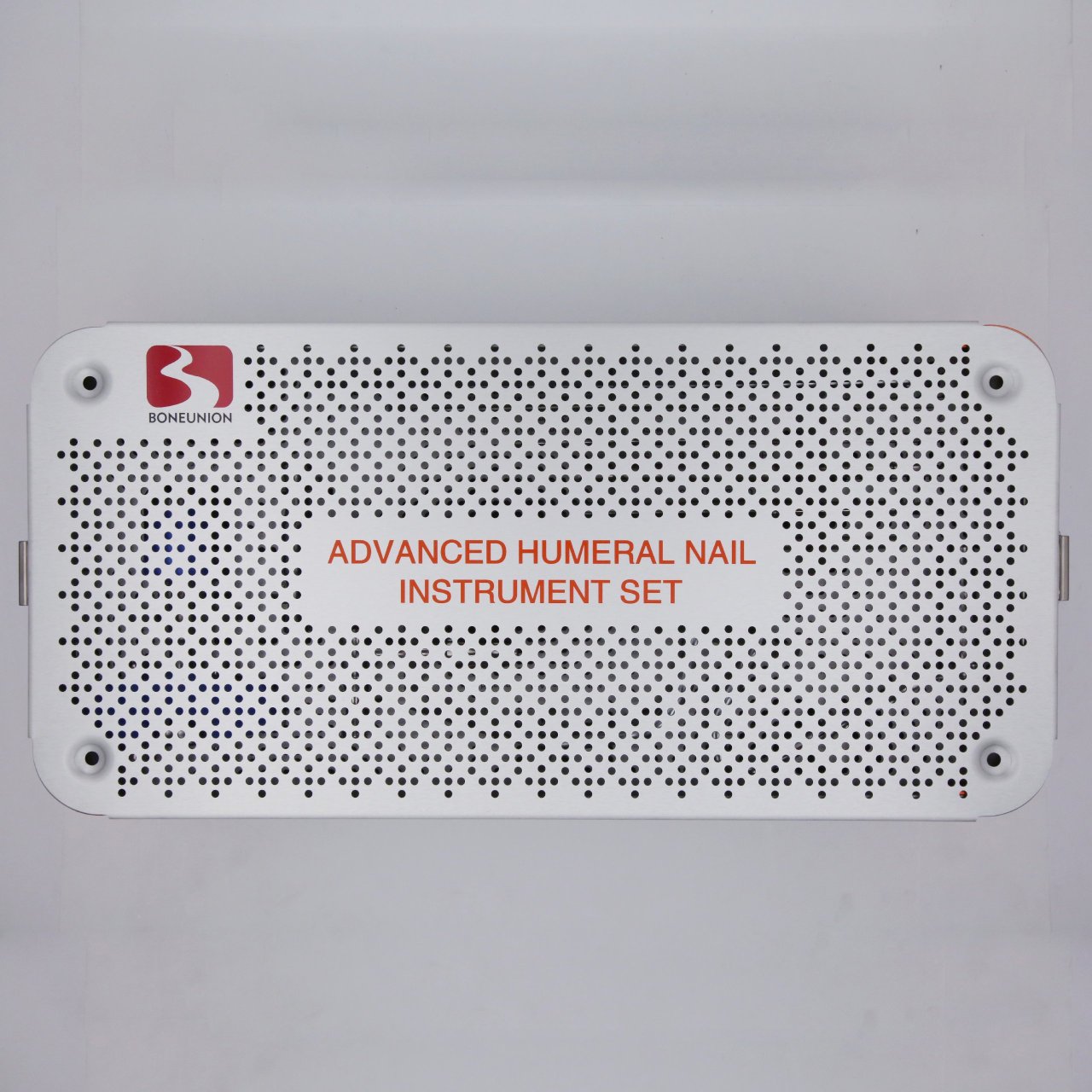

| Advanced Humeral Nail Instrument Case |
1 |
