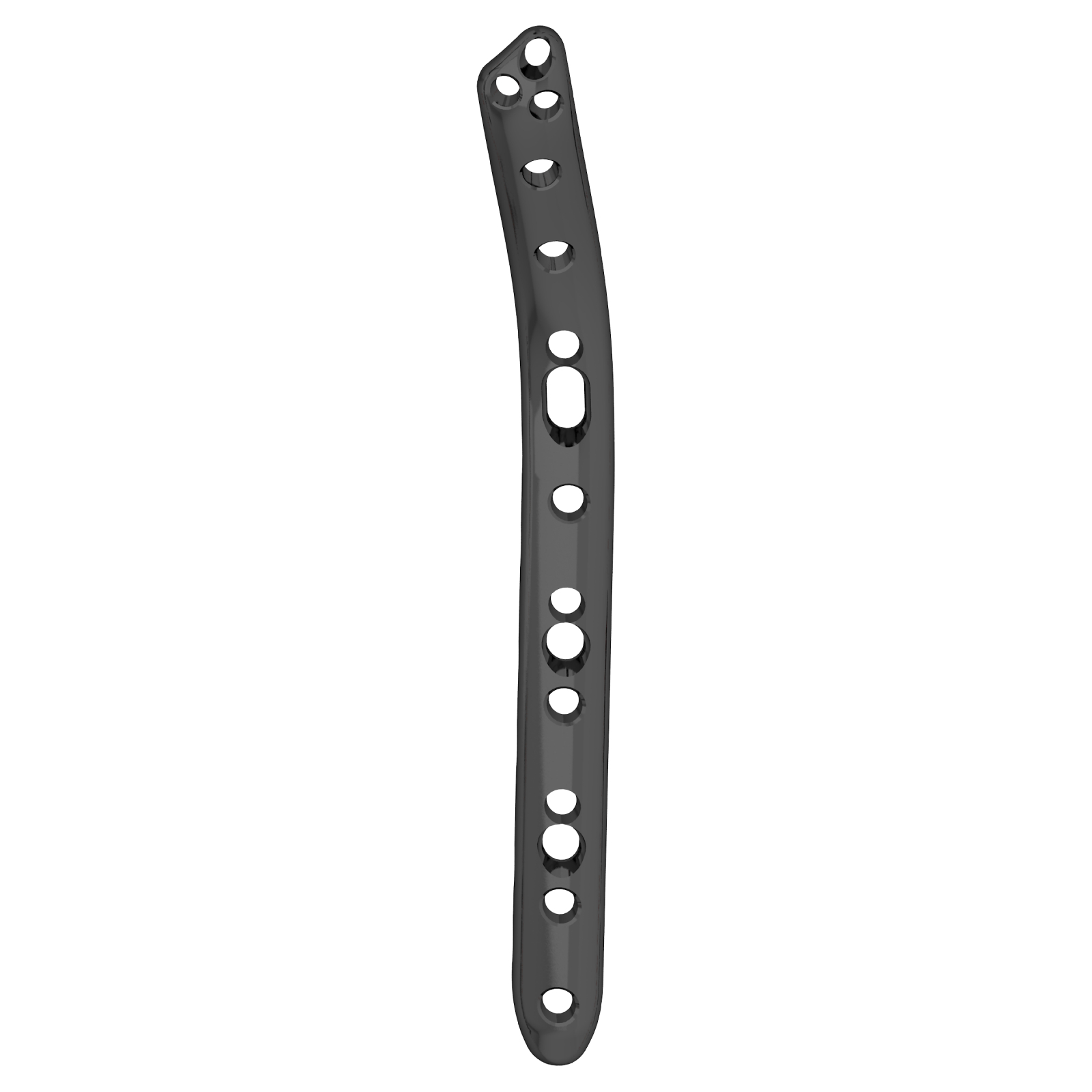

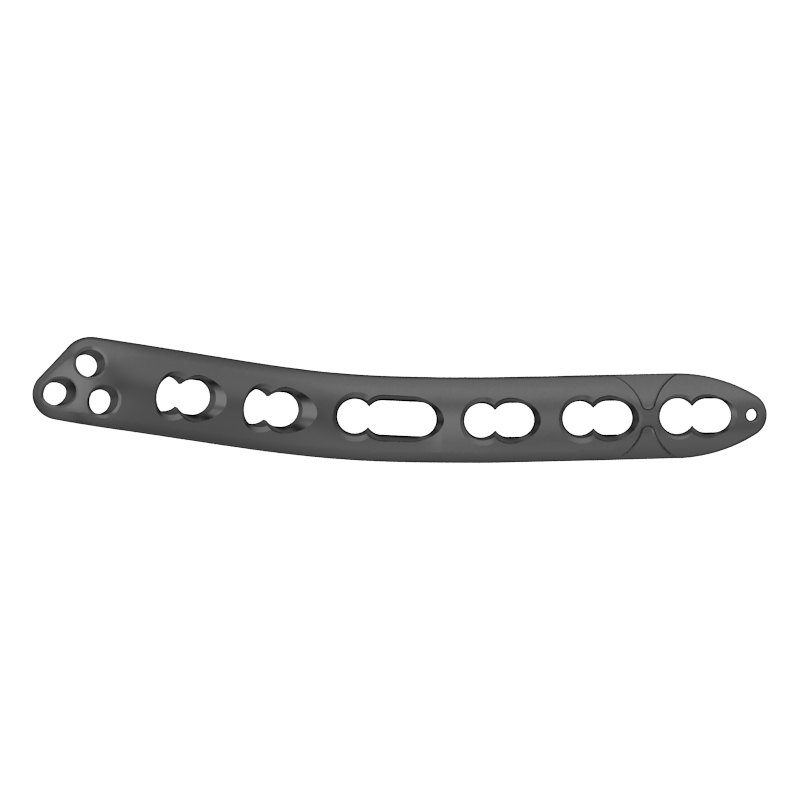

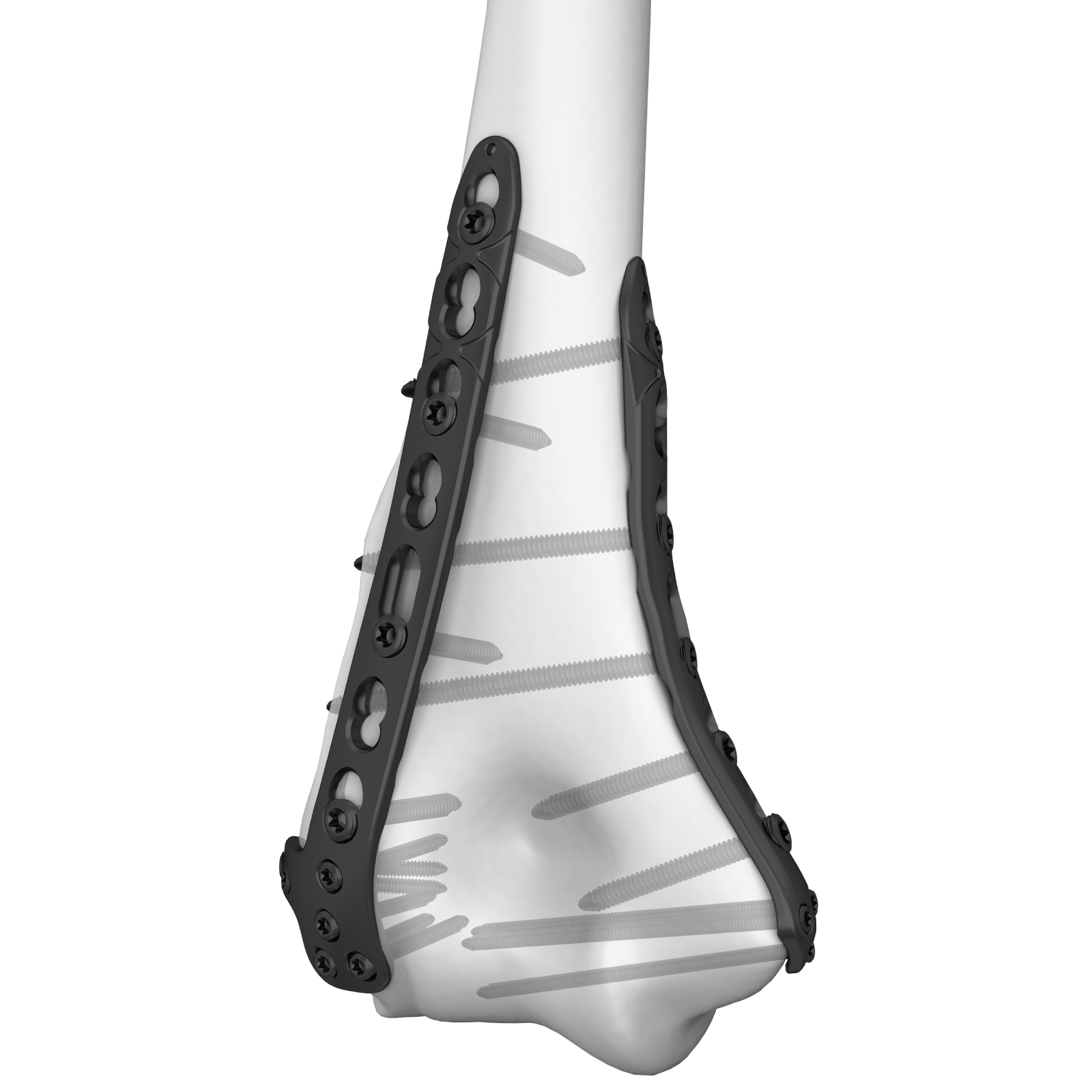

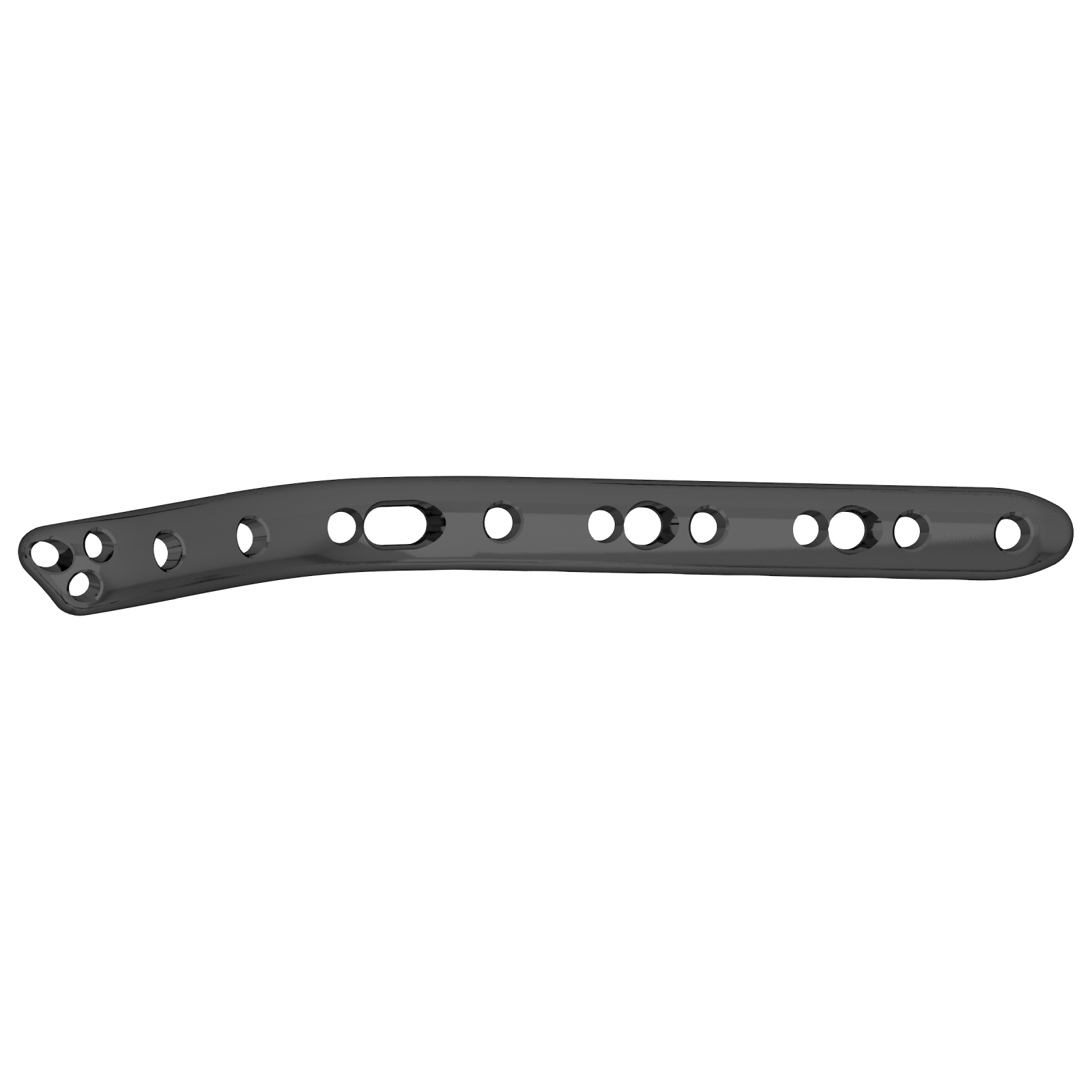

Distal Medial Humeral Locking Plate

Thickness: 2.5mm
Width: 11.2mm
Hole Spacing: 13mm
Material: Ti-6Al-4V
Screws: 3.5mm Locking Screw/Cortex Screw 2.4/2.7mm Locking Screw
Instrument: Small Locking Instrument Set / 2.4/2.7 Locking Plate Instrument Set
Manufacturer: Boneunion Medical
Series: Small Locking Plate
Part: Distal
Bone: Humerus

SKU: 301041 Categories: ,

Description

Distal Medial Humeral Locking Plate, left, 3 Holes, 51mm Length
Distal Medial Humeral Locking Plate, left, 4 Holes, 71mm Length
Distal Medial Humeral Locking Plate, left, 5 Holes, 84mm Length
Distal Medial Humeral Locking Plate, left, 6 Holes, 97mm Length
Distal Medial Humeral Locking Plate, left, 7 Holes, 110mm Length
Distal Medial Humeral Locking Plate, left, 8 Holes, 123mm Length
Distal Medial Humeral Locking Plate, left, 9 Holes, 136mm Length
Distal Medial Humeral Locking Plate, right, 3 Holes, 51mm Length
Distal Medial Humeral Locking Plate, right, 4 Holes, 71mm Length
Distal Medial Humeral Locking Plate, right, 5 Holes, 84mm Length
Distal Medial Humeral Locking Plate, right, 6 Holes, 97mm Length
Distal Medial Humeral Locking Plate, right, 7 Holes, 110mm Length
Distal Medial Humeral Locking Plate, right, 8 Holes, 123mm Length
Distal Medial Humeral Locking Plate, right, 9 Holes, 136mm Length

Additional information

Weight N/A
Dimensions N/A
Holes

3 Holes, 4 Holes, 5 Holes, 6 Holes, 7 Holes, 8 Holes, 9 Holes

Direction

Left, Right
