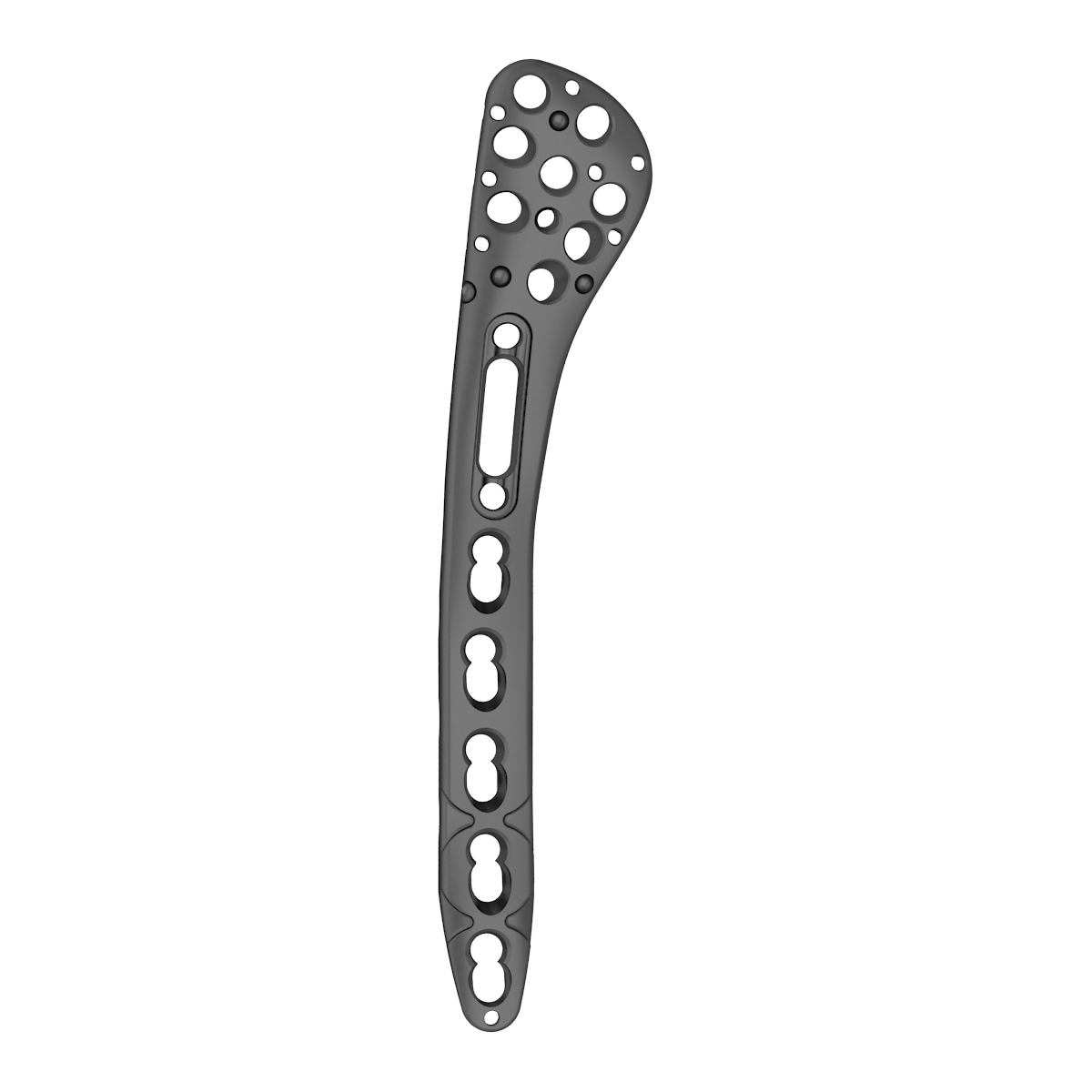

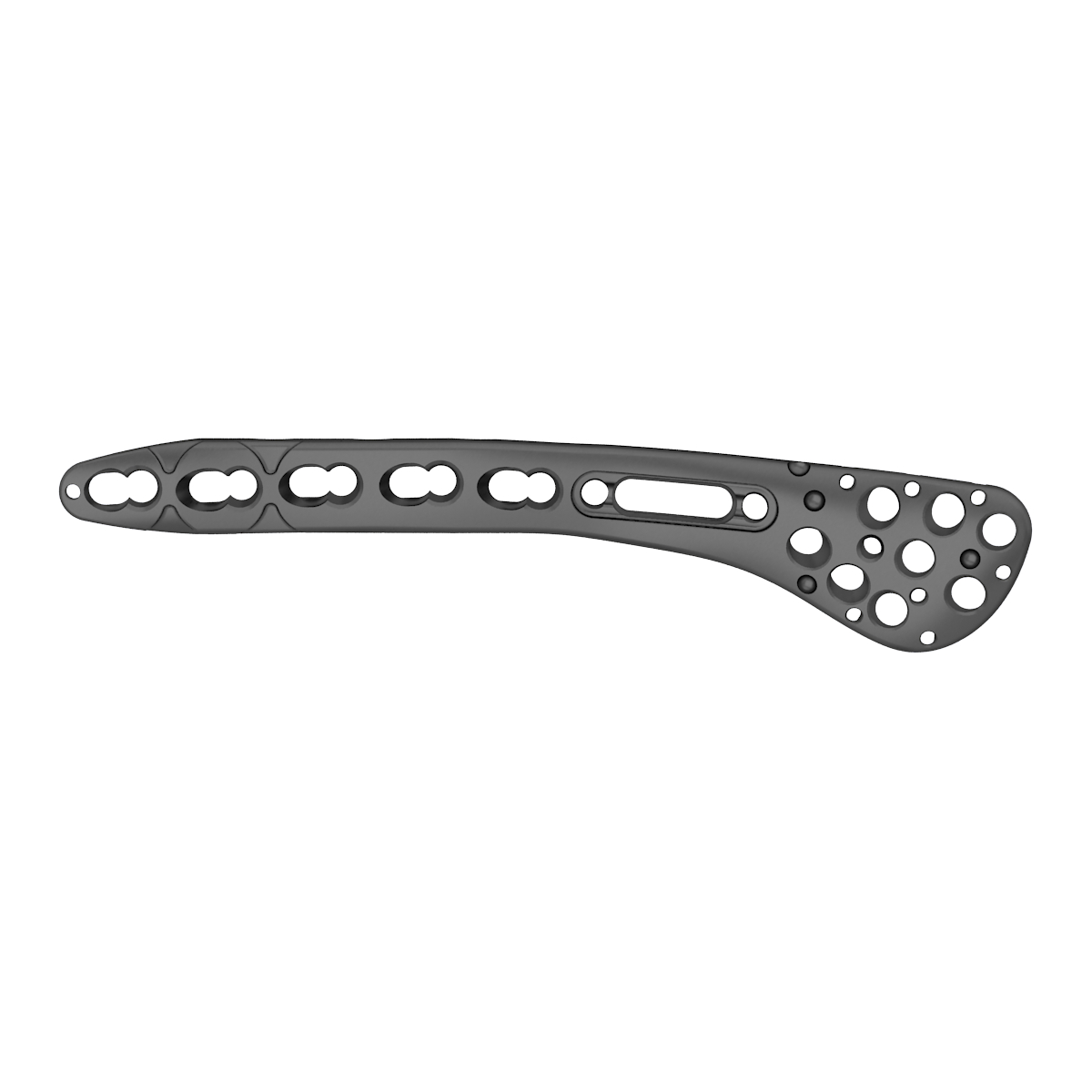

Proximal Humeral Locking Plate Ⅱ

Thickness: 4.0mm
Width: 12mm
Hole Spacing: 14mm
Material: Ti-6Al-4V

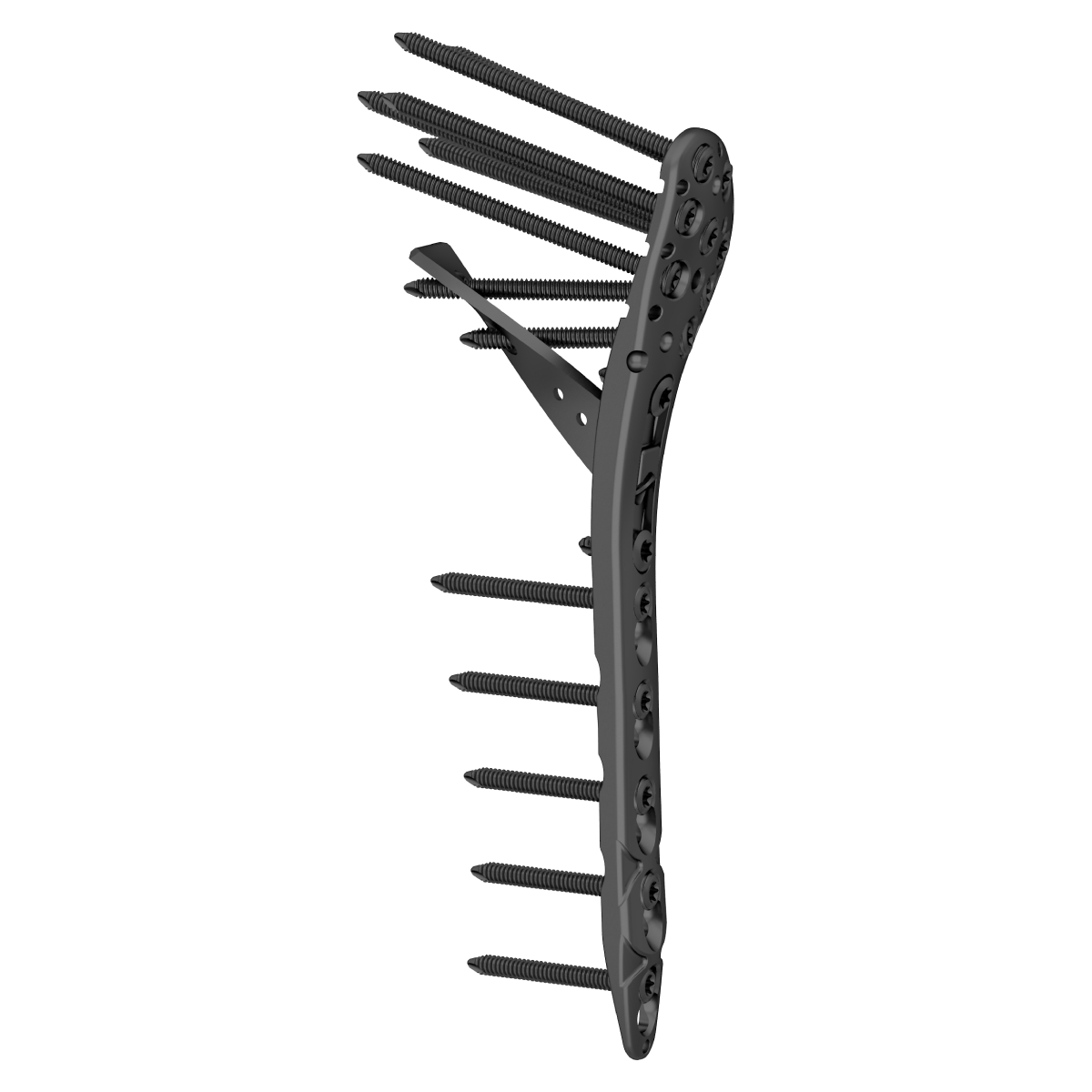

Screws: 3.5mm Locking Screw/Cortex Screw
Instrument: Small Locking Instrument Set
Manufacturer: Boneunion Medical
Series: Small Locking Plate
Part: Proximal

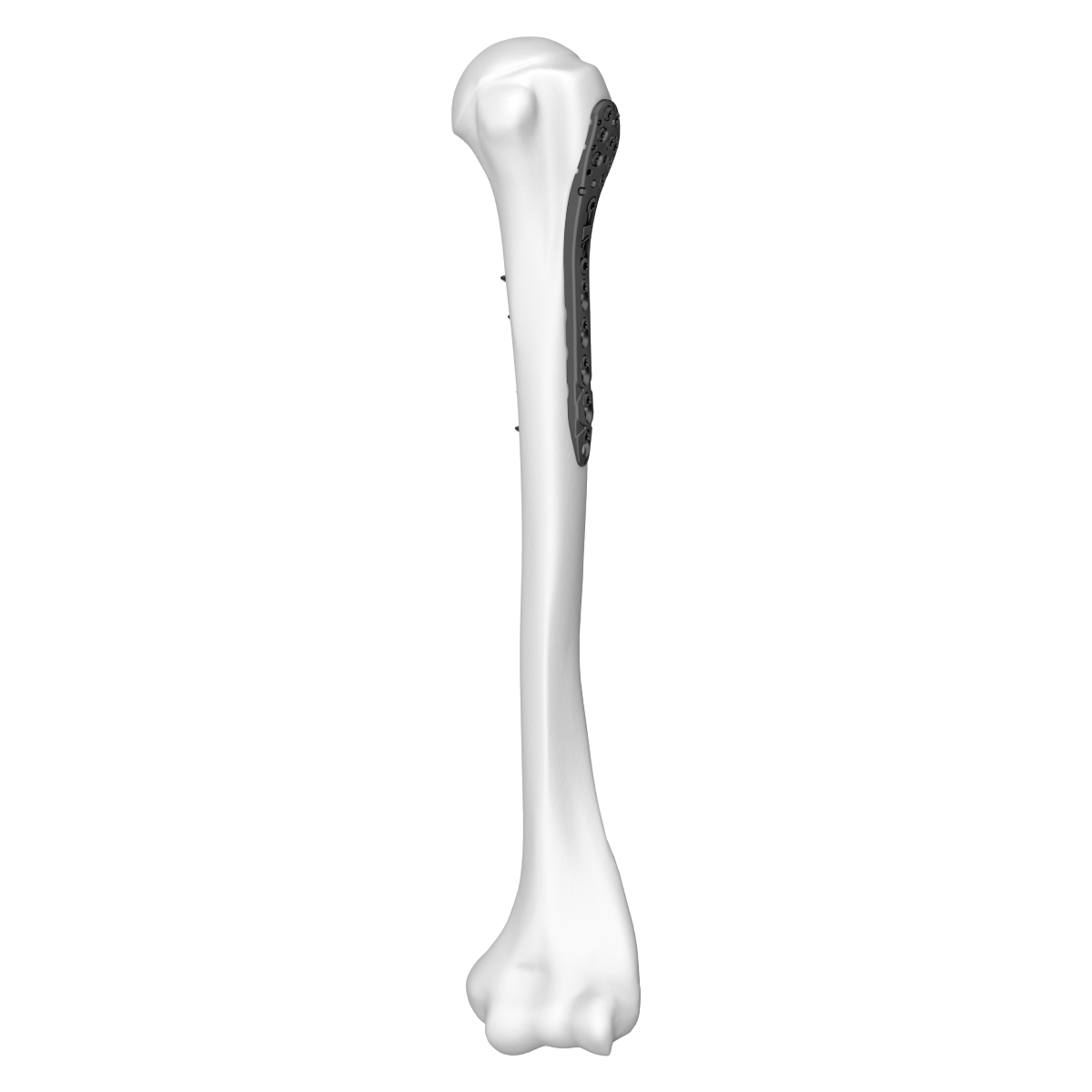

Bone: Humerus

SKU: 301319 Categories: ,

Description

Proximal Humeral Locking Plate Ⅱ, left, 3 Holes, 95mm Length
Proximal Humeral Locking Plate Ⅱ, left, 4 Holes, 109mm Length
Proximal Humeral Locking Plate Ⅱ, left, 5 Holes, 123mm Length
Proximal Humeral Locking Plate Ⅱ, left, 6 Holes, 137mm Length
Proximal Humeral Locking Plate Ⅱ, left, 7 Holes, 151mm Length
Proximal Humeral Locking Plate Ⅱ, left, 8 Holes, 165mm Length
Proximal Humeral Locking Plate Ⅱ, left, 9 Holes, 179mm Length
Proximal Humeral Locking Plate Ⅱ, right, 3 Holes, 95mm Length
Proximal Humeral Locking Plate Ⅱ, right, 4 Holes, 109mm Length
Proximal Humeral Locking Plate Ⅱ, right, 5 Holes, 123mm Length
Proximal Humeral Locking Plate Ⅱ, right, 6 Holes, 137mm Length
Proximal Humeral Locking Plate Ⅱ, right, 7 Holes, 151mm Length
Proximal Humeral Locking Plate Ⅱ, right, 8 Holes, 165mm Length
Proximal Humeral Locking Plate Ⅱ, right, 9 Holes, 179mm Length

Additional information

Weight N/A
Dimensions N/A
Holes

3 Holes, 4 Holes, 5 Holes, 6 Holes, 7 Holes, 8 Holes, 9 Holes

Direction

Left, Right
